Power trim for Mercury 200 1983

[Ricky_rich]

I'm missing the pump to the power trim on my engine. On this engine the pump is mounted in the boat and then two hoses to the cylinder on the motor.
I was wondering if I could get a pump and hoses for a Mercruiser inboard? Original parts are both hard to find, and very expensive.



[Ricky_rich]

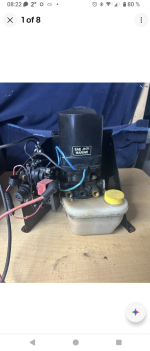

Could a pump like this one work with my old Mercury? Just have to find two hoses that will fit the connections.



[redneck joe]

They make that pump new on amazon, unsure of compatability and I I found exact matches for my 82 50hp on ebay, new. My pump uses four hoses.



[redneck joe]

https://www.amazon.com/DB-Electrical-TRM0101-Mercruiser-Stainless/dp/B019GUKZR2/ref=sr_1_5?dib=eyJ2IjoiMSJ9.dQXSJmA7RnXHgaShHIy75Q6NdGBFvzhKn8dqrnW_38iKHVt7F_y3sTARgy7In7dXOHqnj1TpZ2pWKOa-HiV4OKtNOn4s1OzcIFPxDEFzd9rAdm7PCPT7KwaRYA6aNRcmJe84bsK2MBNYADku43CvbG5NGa07XyO6Kb2SLqljClsvealKjHDWadzZXyWplLP36GMXqzBjclOLSaZm9VuqyM2JF8imjN9h8bMQ5rxP34s.EJ-XWEcSrs6i7RFKHERIJ7xRLs36zznipUfUDYC-MDk&dib_tag=se&hvadid=521151335499&hvdev=t&hvexpln=0&hvlocphy=9013259&hvnetw=g&hvocijid=7374678836170967879--&hvqmt=b&hvrand=7374678836170967879&hvtargid=kwd-332190865412&hydadcr=9495_9892223&keywords=mercury+tilt+and+trim+pump+motor&mcid=844eb1e96ec8309a82f43895de655c02&qid=1762523528&sr=8-5



[redneck joe]

Here is a slightly diff one. DB electric lists the oem part number it appears so you can cross reference that.



[Chris1956]

As far as I remember Mercury OB's used those two hose, pump-in-boat style for just a few years. The earlier PTT pumps were 4 hoses (out of the control valve) to the PTT cylinders, and the later (and current) PTT units were mounted between the transom clamps.

I do not know if the MerCruiser PTT pump will work, however. Hopefully someone who knows will chime in.



[Dukedog]

Could a pump like this one work with my old Mercury? Just have to find two hoses that will fit the connections.
View attachment 413028

yes.............
