1978 Johnson 85 Horsepower Motor Tilt

[DONNABOMB]

HELLO I HAVE A 1978 JOHNSON 85 HORSEPOWER OUTBOARD ON A BONITO BOAT AND I NEED TO KNOW HOW I INSTALL HYDRAULIC FLUID IN TILT?



[emdsapmgr]

Re: 1978 Johnson 85 Horsepower Motor Tilt

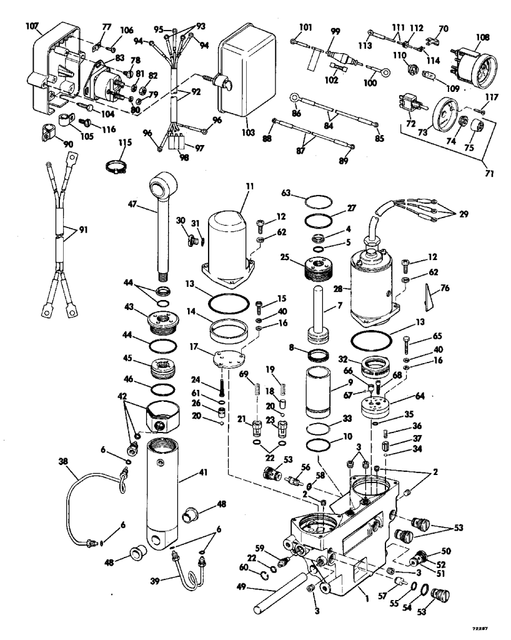

In 1978, OMC made a combination trim/tilt system which mounted inside the two transom brackets. There is a reservoir on the starboard side of the system which has a screw midway up the side. You fill this reservoir up to the lip of the screw hole. Run the system up and down a few times, then add more fluid. It will self-bleed by doing this up/down cycling. Keep adding till the system stays at the full level.



[ezeke]

Re: 1978 Johnson 85 Horsepower Motor Tilt

Be sure to support the motor with the trail lock when adding fluid.



[DONNABOMB]

Re: 1978 Johnson 85 Horsepower Motor Tilt

HELLO I HAVE A 1978 JOHNSON 85 HORSEPOWER OUTBOARD ON A BONITO BOAT AND I NEED TO KNOW HOW I INSTALL HYDRAULIC FLUID IN TILT?

thank you so much for your help!



[86 century]

Re: 1978 Johnson 85 Horsepower Motor Tilt

Number 30
